Minimalism Maximized
Bring life and light to your workspace with Lightline Low Profile Architectural Wall.

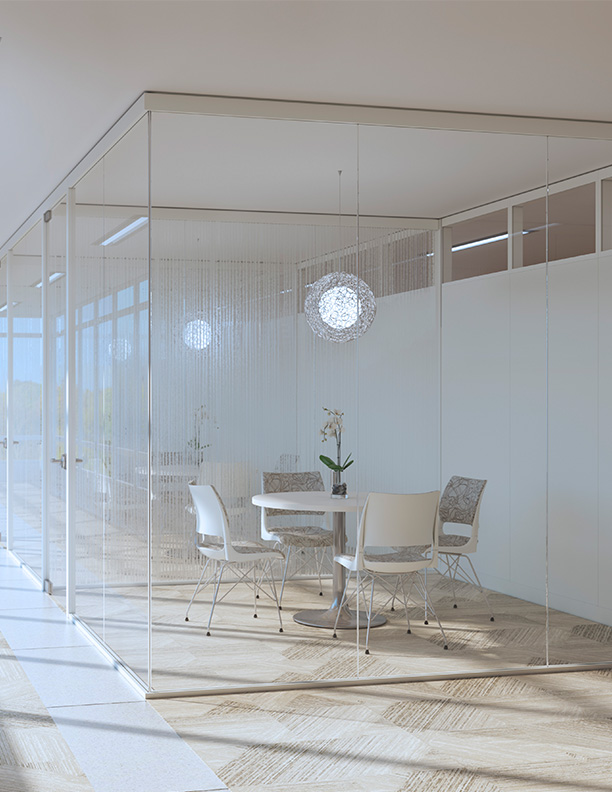

This minimalistic glass storefront system maximizes daylighting and enhances aesthetics throughout a space with its sleek 1-inch base trim, frameless glass doors and endless runs of frameless glass panels. The modern and sophisticated base profile height underlines the brightness and transparency of this minimally framed, naturally beautiful glass office wall solution.
the perfect balance of
Form & Function
With more glass and less framework, Lightline Low Profile creates a stunning, sophisticated visual statement.
Truly unique among wall systems, Lightline Low Profile eliminates the need for additional support structures or costly construction elements like drywall soffits. Featuring semi-unitized design, Lightline Low Profile is easier and faster to install than traditional stick-built methods, saving time and cost on site.
Specifications
Highly versatile and endlessly customizable, Lightline Low Profile elegantly divides and defines spaces for private offices and executive suites, small focus rooms, large conference rooms and more.
Standard Finishes
Select from a variety of finishes to create elegant, sophisticated spaces with Lightline Low Profile.
Slight variations occur in texture, color, grain configurations and finish acceptance of materials used. Therefore, finished pieces may vary in tone or character from these images. Please order a sample from your KI sales representative for a more accurate representation of the finished piece.
Click here to view the Wood Veneer Finishes Card.
- Anigre Clear
- Cherry Storm on Beech
- Cinnamon on Beech
- Cocoa on Beech
- Ebony Clear
- Eclypse Black
- Makore Clear
- Monticello Maple on Beech
- Natural on Beech
- River Cherry on Beech
- Zebrawood Clear
- Cherry Storm on Maple
- Cinnamon on Maple
- Cocoa on Maple
- Kensington Maple on Maple
- Monticello Maple on Maple
- River Cherry on Maple
- Brighton Walnut on Oak
- Castle Oak on Oak
- Cinnamon on Oak
- Cocoa on Oak
- Medium on Oak
- River Cherry on Oak
- Natural on Walnut
Click here to view Architectural Wall Shells & Trim Card.
- Cottonwood
- Cottonwood Textured
- Cashmere
- Satin Sheet
- Satin Sheet Textured
- Full Moon
- Cultured Pearl
- Birch Bark
- Neutral Ground
- Neutral Ground Textured
- Calm Before the Storm
- Calm Before the Storm Textured
- Driftwood
- Driftwood Textured
- Light Tone
- Light Tone Textured
- Rockslide
- Rockslide Textured
- Cool Grey
- Steel Wool
- Steel Wool Textured
- Warm Grey
- Warm Grey Textured
- Sand
- Sand Textured
- Caramel Corn
- Caramel Corn Textured
- Misty Brown
- Tarragon
- Tarragon Textured
- Dragonfly
- Dragonfly Textured
- Midnight Tide
- Midnight Tide Textured
- Stormy
- Stormy Textured
- Flannel
- Flannel Textured
- Black Textured
- Starlight Silver Metallic
- Bronze Metallic
- Bronze Metallic Textured
- Black Pearl Metallic
- Champagne Metallic
- Espresso Metallic
Product Details
View dimensions and details as well as code compliance and sustainability ratings.
- Excluding door frames, Lightline glass panels offer unlimited butt-glazing capabilities (no vertical posts)
- Starter posts can integrate with flush (preferred) and non-flush permanent walls or with KI’s Evoke and Genius walls
- Butt-glazed glass panel width: ranges from 12" to 48"
- Ceiling heights up to 120"
- Standard frame depth is 2.25" overall
- Vertical adjustment is +.375"
- Sliding and pivot-hinged door units are standard
- Sliding doors available with soft stop (self-close) and soft open options
- Full height of sliding door is up to 120"
- Full height of pivot door is up to 108"
- Full height of transom pivot door is up to 120"
- Door leaf options include solid core, frameless tempered glass, stile/rail-glazed options, and aluminum framed
- KI offers standard hardware options; other hardware options may also be used
- SCS Indoor Advantage™ Gold Certified for Indoor Air Quality
- CARB Compliant – Phase II
- FSC® Certified Wood Option (License Code: FSC-C011706)
- BIFMA e3 level 2 Certified
- Seismic Structural Calculations
- Meets Glass Association of North America (GANA) standards: GANA recommends ½"-thick glass for ceiling heights above 96"to 120", and Lightline uses ½"-thick glass in the construction of the top and bottom framed butt-glazed glass partitions

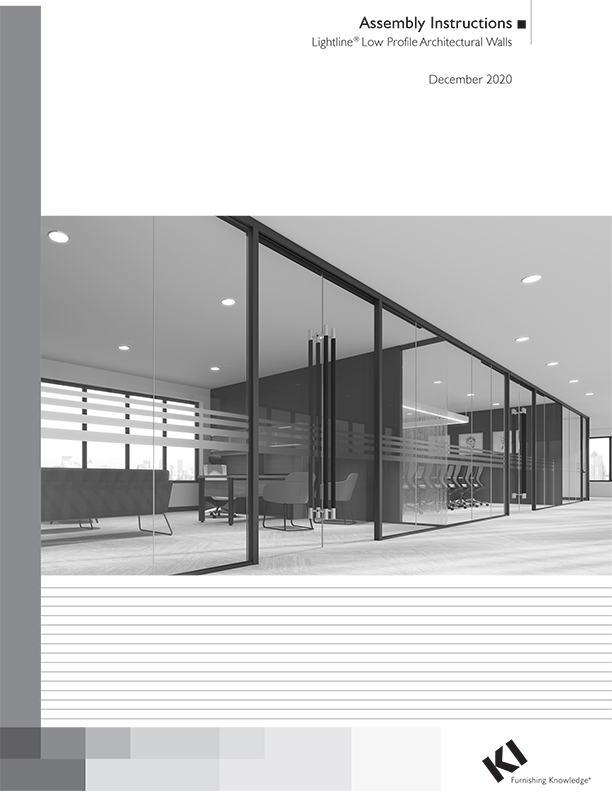

Assembly Components
Review assembly details and material components relative to final installation.
- Ceiling track, 3" ceiling trim, 1" base
- Architectural grade and structural aluminum alloys
- Butt-glazed glass is ½" (12mm) clear tempered
- ½" tempered glass weight is approximately 6.4 lbs/sq ft.
- ½" tempered glass yields a 36 STC rating
- ½" laminated glass yields a 38 STC rating
- ½" laminated glass with acoustic interlayer yields a 39 STC rating
- Patterned glass film options are field-applied
- Overlapping aluminum base
- Leveling shims for vertical adjustment
- Non-damaging carpet gripper screws
- Concrete anchors for hard flooring and seismic areas
- U-shaped extruded aluminum ceiling track with free-float adjustment secures to the top of the panel. The connection between track and ceiling is sealed with a gasket.
- Ceiling trim’s unique design minimizes shadow reveal line at the ceiling when working with ceiling grid unevenness.
- Ceiling channel is secured with non-damaging caddy clip connections. Weight of system is dispersed to the floor; no extra blocking or structural support is required above the ceiling unless required by code.
Installation
This 2-minute overview shows how quickly and cleanly Lightline Low Profile installs and how easily it adapts to existing architecture in a large office space.
